Features and use:

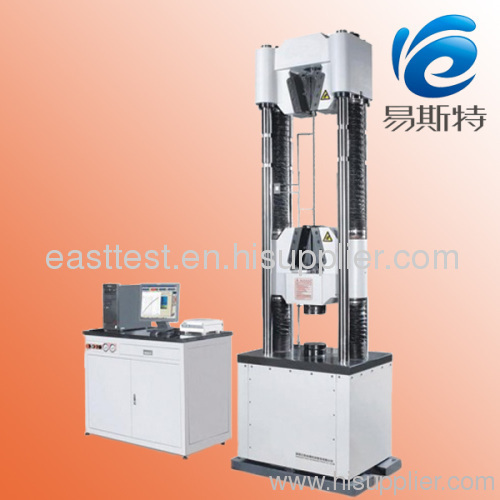

WAW-G series features servo hydraulic loading and motor driving system and a rugged six column construction for exceptional load frame rigidity. It is originally designed to meet exacting requirements of testing strand steel wire.
It has dual testing space for tension test and compression test or other tests (need corresponding grips) of other materials respectively. An adjustable lower crosshead quickly accommodates specimens of varying lengths. In the case of additional length of columns, the maximum testing space is adjustable to meet extra length specimens. Positive specimen holding is ensured by the wedge action of hydraulic operated grips. The machine has an operating range from 600kN to 1000kN and maintains an accuracy of +1% of the displayed load from 1% to 100% of capacity.
Comply with GB/T 5224-2003 and GB/T 228-2002.
